6-35 kV交联聚乙烯绝缘电力电缆
6~35 kV XLPE INSULATED POWER CABLE
一、用途 Uses
电缆用于额定电压3.6 (6)/6 kV、6.0 (8.7)/10 kV、8.7 (12)/15 kV、12 (18)/20 kV、21(26)/35 kV输配电系统，供输配电能之用。
The product is used for rated voltage of 3.6 (6) / 6 kV, 6.0 (8.7) / 10 kV, 8.7 (12) / 15 kV, 12 (18) / 20 kV, 21 (26) / 35 kV power distribution system, for transmission and distribution of electric energy use.
二、执行标准 Standards
本产品按照等效采用IEC 60502标准的GB/T 12706标准进行生产，阻燃类电缆符合国标GB/T 19666。
This product is used in accordance with IEC 60502 standard is equivalent to GB / T 12706 standard for production. Flame-retardant cable meets the national standard GB / T 19666.
三、使用特性 Product features
1、电缆导体高允许工作温度：正常运行时90 ℃，短路时（长5 s）为250 ℃。
Max. admissible temperature for conductor：90 ℃ under normal running condition，250 ℃ during short circuit（max. duration not exceeding 5s）.
2、U0按系统接地故障持续时间不同分为两类，见表3-1
第1类电缆——用于单相接地故障时间每次不大于1分钟的系统，亦可用于长不超过8 h，每年累计不超过125 h的系统。
第2类电缆——用于接地故障时间更长的系统，对电缆绝缘性能要求较高的场合，也应采用第2类。
U0according to system ground fault duration divided into two categories, see Table 3-1.
Class 1 cable -- time for single-phase ground fault is less than 1 minute each time the system can be used for no longer than 8 h, 125 h per year does not exceed the total system.
Category 2 cable -- longer for ground-fault system, the cable insulation applications requiring high performance, it should be Category 2.
表3-1 Table 3-1 单位（Units）：kV
|
体之间的额定工频电压（U） Conductor between the rated power frequency voltage (U) |
设备高电压（Um） Maximum voltage equipment (Um) |
电缆导体与屏蔽或金属 套之间的额定工频电压 （U0） Conductor shielded cable with metal cover or between the rated power frequency voltage (U0) |
|
|
第1类电缆 Class 1 cable |
第2类电缆 Category 2 cable |
||
|
6 |
7.2 |
3.6 |
6.0 |
|
10 |
12 |
6.0 |
8.7 |
|
15 |
17.5 |
8.7 |
12 |
|
20 |
24 |
12 |
18 |
|
35 |
42 |
21 |
26 |
3、电缆在环境温度不低于0 ℃条件下敷设时，无须预先加热，电缆的敷设不受落差限制。敷设时0.小弯曲半径：
Cable of not less than 0 ℃ ambient temperature under the conditions of laying, without pre-heating, cable laying is not drop restrictions. Minimum bending radius when laid:
单芯电缆（Single-core cable） 20（D+d）±5%mm
多芯电缆（Multi-core cable） 15（D+d）±5%mm
式中（Where）：D——电缆的实际外径（The actual diameter of the cable），mm
d——电缆导体的实际外径（The actual diameter of the cable conductor），mm
四、交联电缆的型号及主要用途（表4-1）XLPE cable types and the main purpose (Table 4-1)
表4-1 Table 4-1
|
型号 Type |
名称 Name |
主要用途 Main purpose |
|
|
铜芯 Copper
|
铝芯 Aluminum |
||
|
YJV YJY |
YJLV YJLY |
交联聚 乙烯绝 缘聚氯 乙烯或 聚乙烯 护套电力电缆 XLPE insulated PVC or PE sheathed power cable |
适用于室内、 隧道、 电缆沟及管道中， 也可埋在 松散的土壤中， 不能承 受外部机械压力， 但可承 受一定的 敷设牵引。
Suitable for indoor, tunnel, cable trench and the pipe can also be buried in loose soil, can not withstand external mechanical stress, but can withstand a certain degree of laying traction |
|
ZC-YJV ZC-YJY |
ZC-YJLV ZC-YJLY |
阻燃交联聚乙烯绝缘聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated flame-retardant PVC or PE sheathed power cable |
|
|
YJV22 YJV23 |
YJLV22 YJLV23 |
交联聚乙烯绝缘钢带铠装聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated steel tape armored PVC or PE sheathed power cable |
适用于室内 、隧道、 电缆沟及地 下直埋敷设， 能承受机械 外力作用， 但不能承受 大的拉力。
Suitable for indoor, tunnels, t renches and underground direct burial cable can withstand external mechanical forces, but can not afford a big pull. |
|
ZC-YJV22 ZC-YJV23 |
ZC-YJLV22 ZＣ-YJLV23 |
阻燃交联聚乙烯绝缘钢带铠装聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated steel tape armored flame retardant PVC or PE sheathed power cable |
|
|
YJV32 YJV33 |
YJLV32 YJLV33 |
交联聚乙烯绝缘细钢丝铠装聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated thin steel wire armored, PVC or PE sheathed power cable |
敷设在 竖井、 水下及具 有落差条 件下的场合， 电缆能承 受机械外 力作用和 相当大的 拉力。
Laid in the shaft, and a drop of water under the conditions of the occasion, the cable can withstand external mechanical forces and considerable tension. |
|
ZＣ-YJV32 ZＣ-YJV33 |
ZＣ-YJLV32 ZＣ-YJLV33 |
阻燃交联聚乙烯绝缘细钢丝铠装聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated thin steel wire armor flame-retardant PVC or PE sheathed power cable |
|
|
YJV42 YJV43 |
YJLV42 YJLV43 |
交联聚乙烯绝缘粗钢丝铠装聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated thick steel wire armored, PVC or PE sheathed power cable |
适用于 水中、 海底、 落差 较大 及需跨 越的 场所等。 较之细钢 丝铠装 电缆， 粗钢丝 铠装 电缆能 承受 更大的拉力
For water, sea, across the gap and the need for larger premises and so on. Than thin steel wire armored cable, thick steel wire armored cable can withstand greater tension。 |
|
ZＣ-YJV42 ZＣ-YJV43 |
ZＣ-YJLV42 ZＣ-YJLV43 |
阻燃交联聚乙烯绝缘粗钢丝铠装聚氯乙烯或聚乙烯护套电力电缆 XLPE insulated thick steel wire armor flame-retardant PVC or PE sheathed power cable |
|
|
注：我公司还可生产与上述型号电缆相对应的： 低烟低卤、低烟无卤型阻燃电缆，以及阻水型电缆。 Note： Our company can produce cables with the corresponding model: low smoke and low halogen, low smoke zero halogen flame retardant cable, and water-blocking cable. |
|||
五、交联电缆的额定电压、芯数、截面范围（表5-1） XLPE cable rated voltage, core number, section range (Table 5-1)
表5-1 Table 5-1
|
额定电压 Rated voltage kV |
第一类电缆Class 1 cable |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|
第二类电缆Category 2 cable |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
|
|
导体截面范围 Conductor cross-section range mm2 |
单芯 Single |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
50-1200 |
|
三芯 Three-core |
25-400 |
25-400 |
35-400 |
50-300 |
50-300 |
50-300 |
六、电缆结构 Cable structure

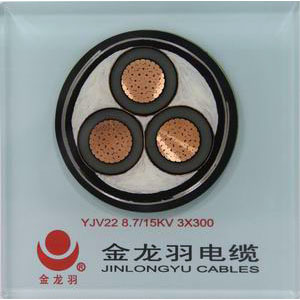

1、6～35 kV交联电缆实物样品 6～35 kV XLPE cable in-kind samples
中低压电缆样品组 Sample group of low-voltage cable
2、6～35 kV交联电缆结构示意图 6 ~ 35 kV XLPE cable schematic
Single core XLPE cable Three-core XLPE cable
图中（Figure）：1--导体 Conductor 图中（Figure）：1--导体Conductor，
2--导体屏蔽 Conductor shield 2--导体屏蔽Conductor shield， 3--绝缘Insulation，
3--绝缘 Insulation 4--绝缘屏
